Rs. 3,300.00

700 Lumens | Uses 1* 16340 700mAh Battery | Battery Not Included

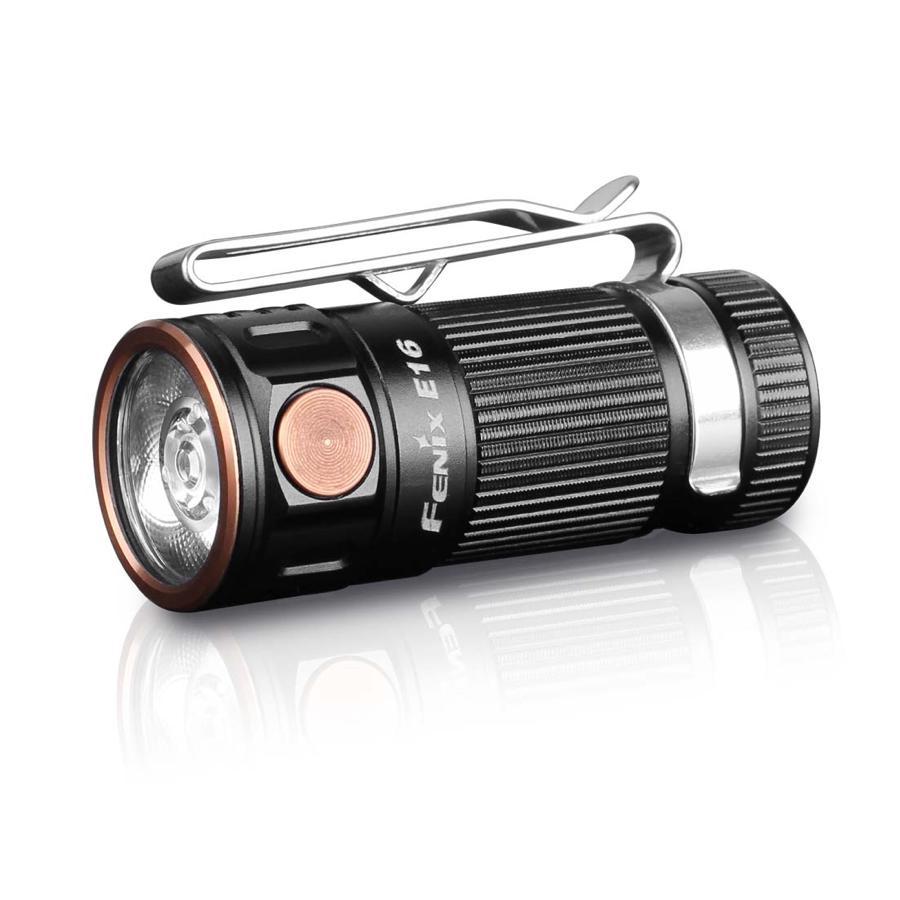

Fenix E16

High Performance EDC Flashlight

As a compact everyday carry light, the Fenix E16 is truly a contender for the best in its class. While it may be minuscule, the E16 is also mighty with an integrated neutral white CREE XP-L HI LED that produces a whopping 700 Lumens when powered with a 16340 battery. Measuring just two inches in length and featuring an easy to use single side switch interface, it's easy to see how the Fenix E16 could become your go to light for most situations! For an added touch of convenience, the E16 has two separate lockout functions (electronic and mechanical) that will keep the light from turning on when you don't want it to. Top off that incredible performance with a comfortable design and durable construction, and you've got an EDC that's really worth writing home about.

Automobile Optical Lens Coating

The Fenix E16 has a wealth of unique features, including its specially designed and coated lens. The lens of this light is made ultra thin and is coated with a clearing agent that provides extra clear vision and a smooth, stable beam. Along with a neutral white LED tint, the E16 emits a beam that is warm, well spread and with a realistic color rendering that is easy on the eyes. This light is perfect for casual, everyday use and is great for needs such as walking the dog, taking out the trash or just taking a nice evening stroll.

Features:
  • Incredible 700 Lumen Brightness

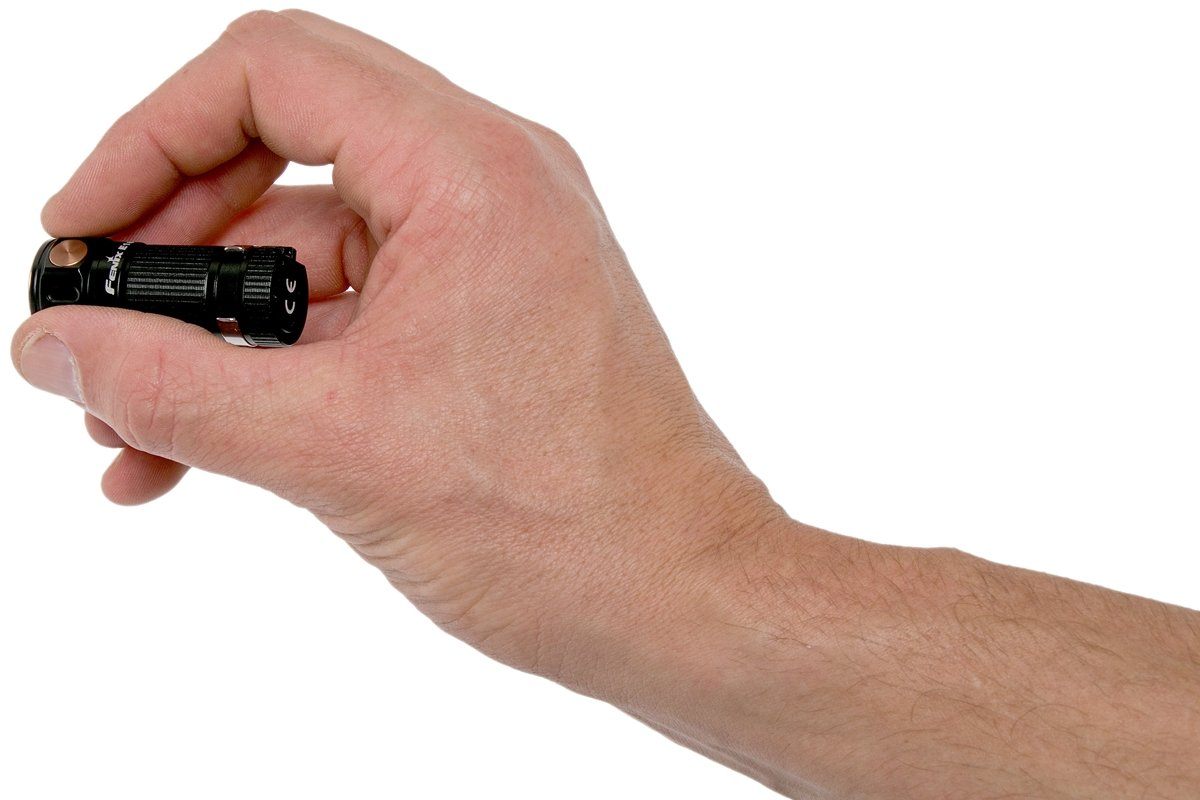

  • Extremely compact measuring just 2 inches in length
  • Neutral white LED provides warm, natural feeling light
  • Uses either rechargeable 16340 or primary CR123A battery
  • Dual lockout methods to prevent accidental activation

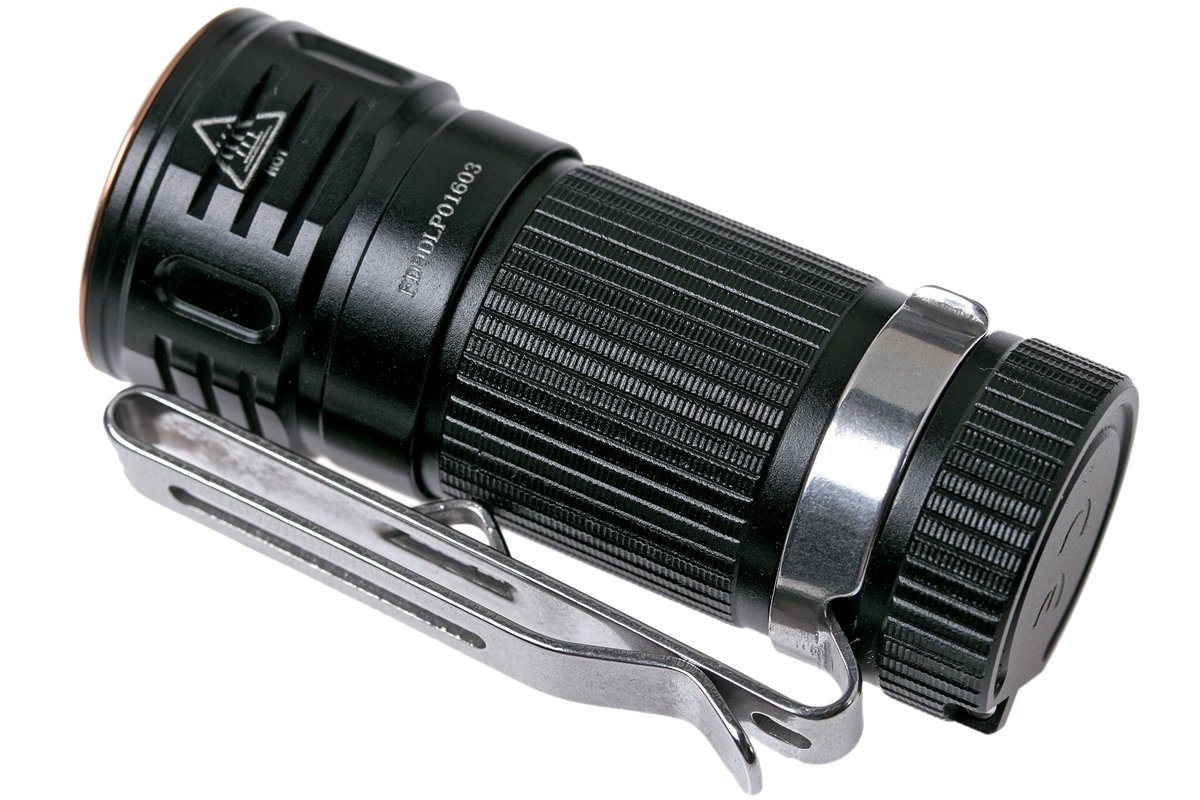

  • Two way pocket clip for flexible storage

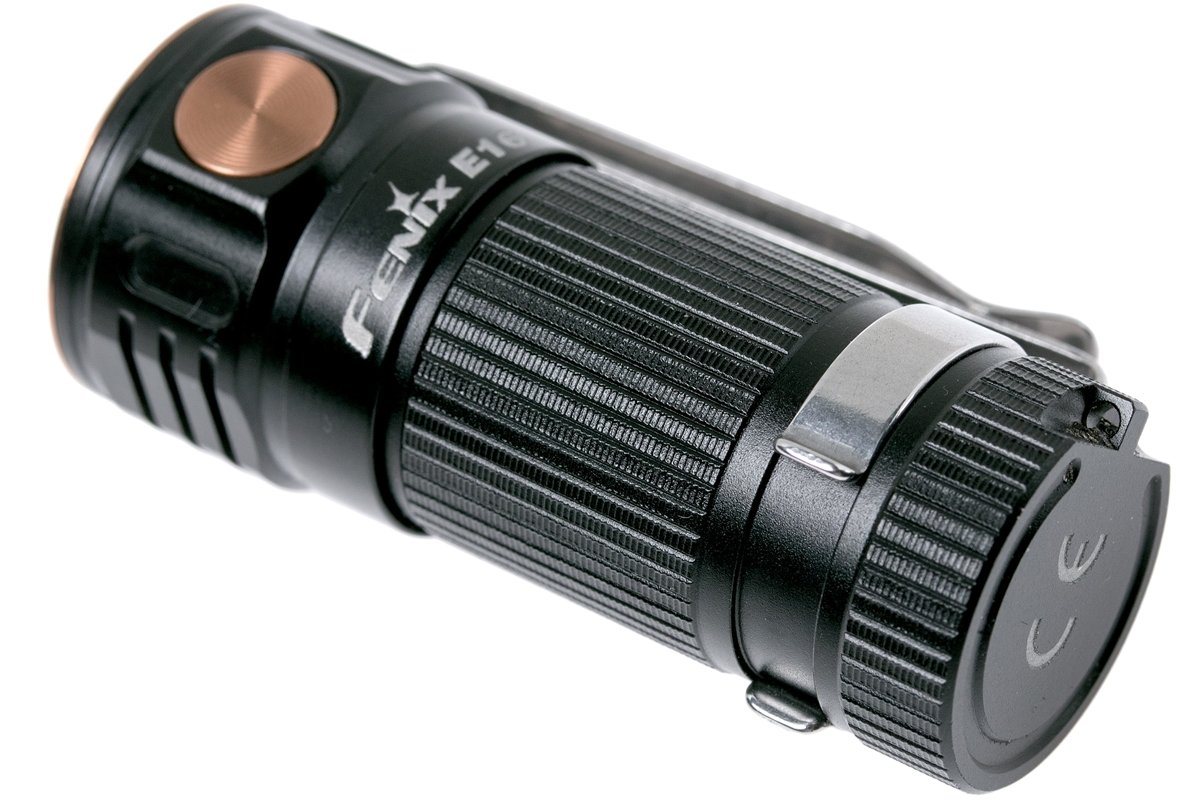

  • Magnetic tail cap attaches to metal surfaces for hands free lighting

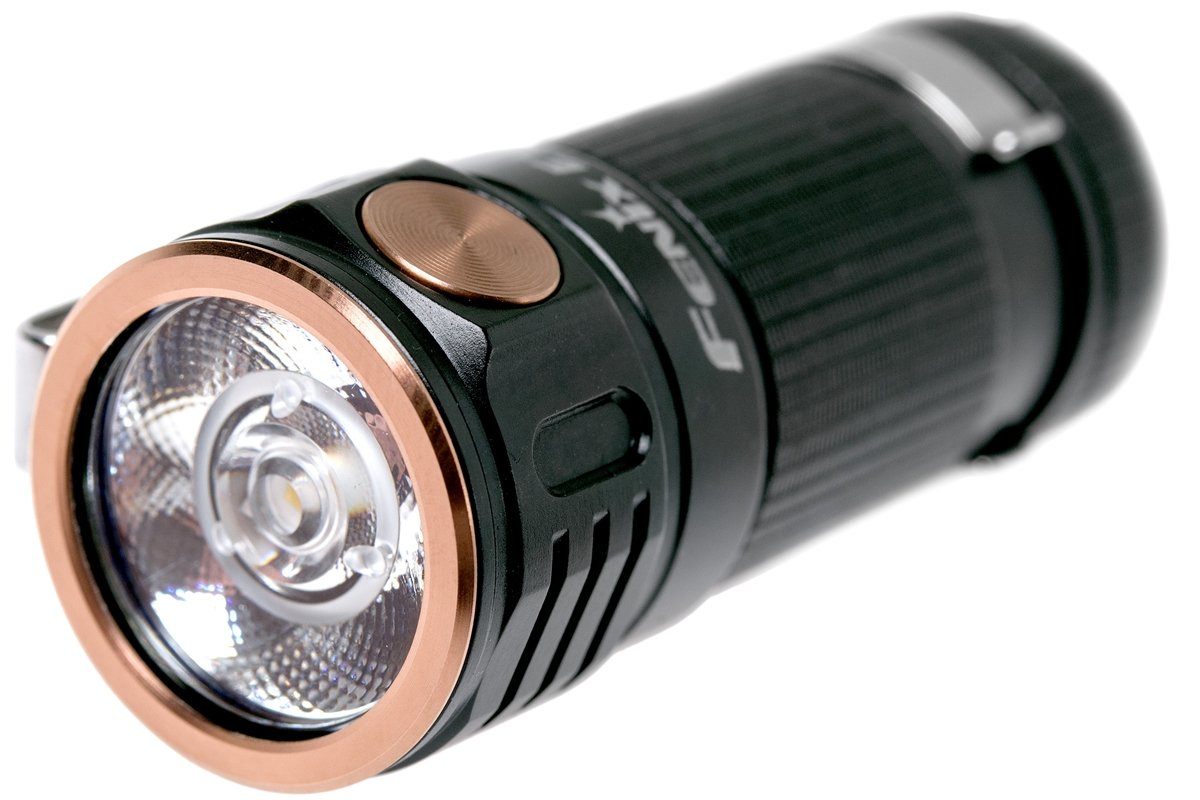

  • Stainless steel side switch for fast, easy control
  • Low-voltage warning function lets users know when battery life is low

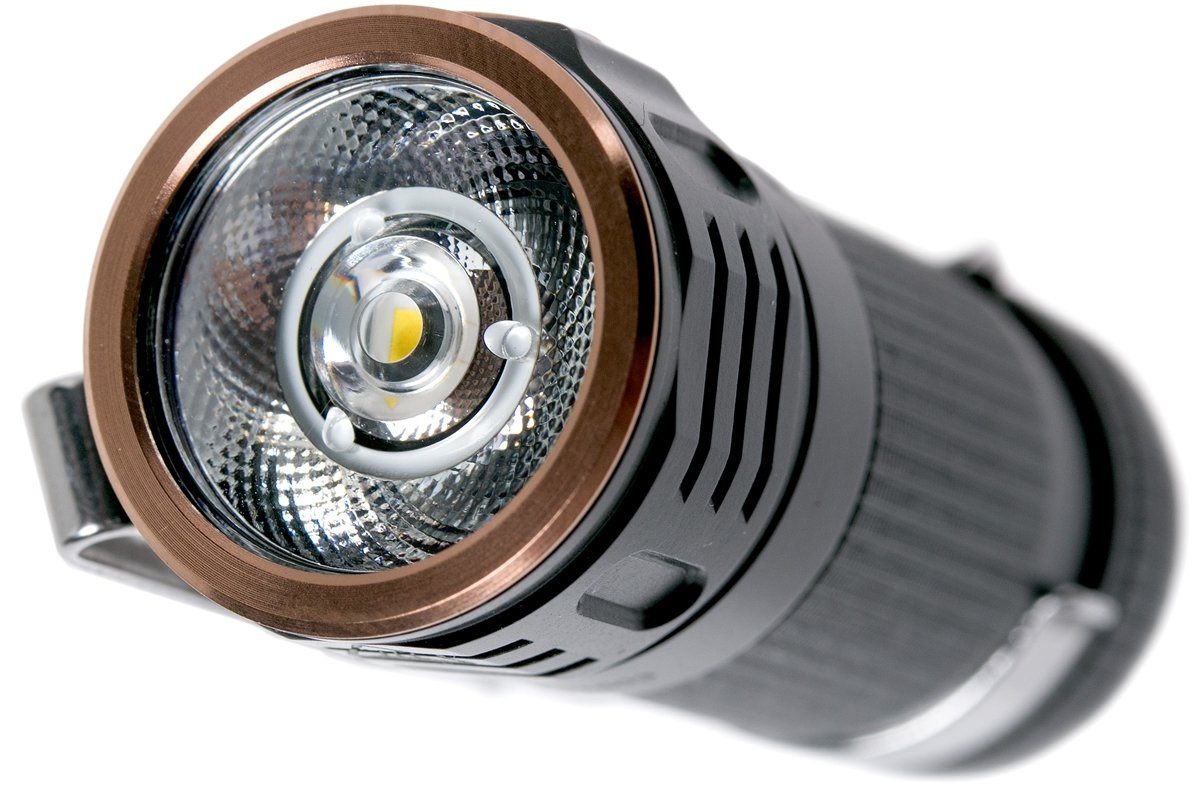

  • Automobile optical lens coating enhances the power of LED technology
  • Overheat protection prevents high surface temperatures
  • Digitally regulated output maintains constant brightness
  • Reverse polarity protection protects against improper battery insertion
  • Anti-roll and anti-slip design with comfortable knurling
  • Made of durable high-strength and oxidation resistant aluminum
  • Premium type HAIII hard-anodized anti-abrasive finish

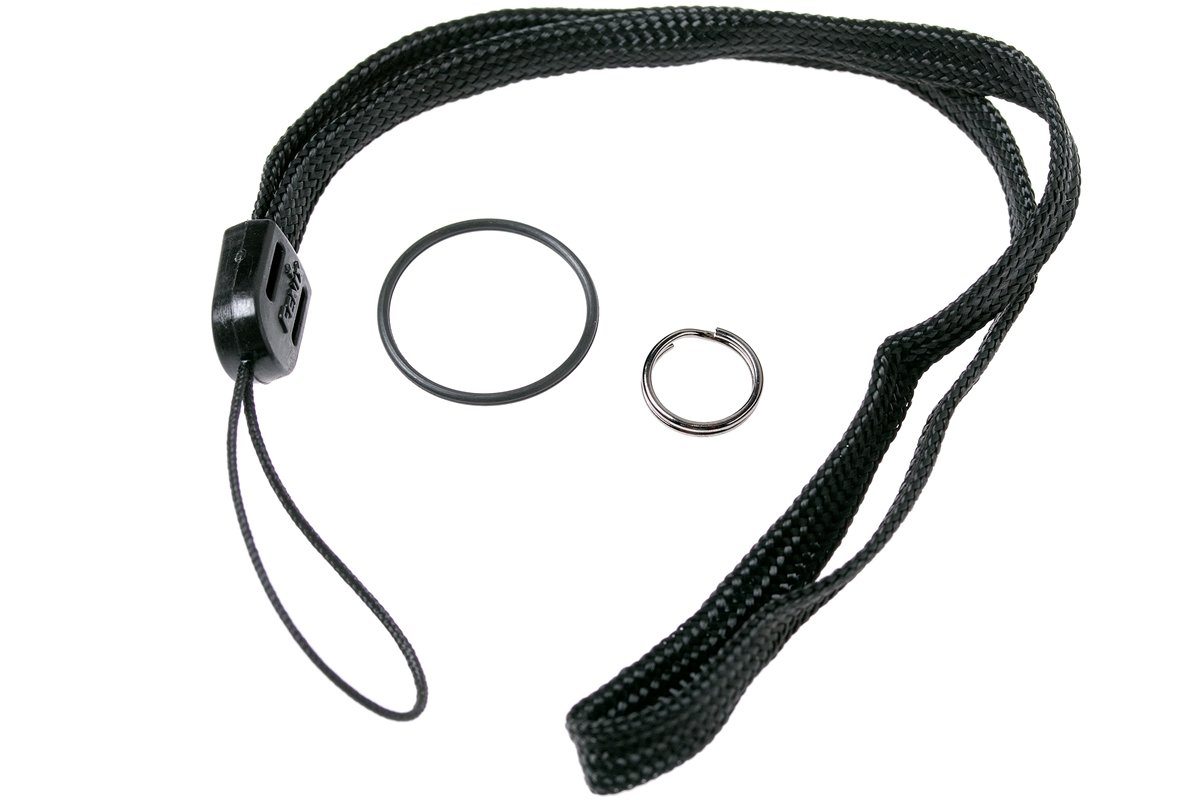

  • Includes:
    • E16 Flashlight
    • Lanyard
    • Key ring
    • Spare O-Ring
    • User Manual
    • Warranty Card
    • Information Leaflet
Specifications:
  • LED: Neutral White CREE XP-L HI
  • Power Source: 1 x 16340 or 1 x CR123A (Not Included)
  • Peak Beam Distance: 142 meters (465 ft.)
  • Peak Beam Intensity: 5050cd
  • Brightness Outputs:
    • Turbo 700 Lumens - 1 Hour 5 Minutes
    • High 150 Lumens - 2 Hours
    • Medium 30 Lumens - 11 Hours 55 Minutes
    • Low 3 Lumens - 70 Hours
    • Special Output Strobe
  • IPX Rating: IPX68 Waterproof (2 Meter Submersible)
  • Impact Resistance: 1 meters (3.2 ft.)
  • Dimensions:
    • Length - 2" (51 mm)
    • Head Diameter - 0.83" (21.1 mm)
    • Body Diameter - 0.77" (19.8 mm)
  • Weight: 0.77oz. (22 g)

1* 16340 700mAh Battery To Be Bought Separately (Battery Not Included)

BATTERY & CHARGER TO BE BOUGHT SEPARATELY

COMBO OFFER:

Fenix E16 LED Flashlight in India, Everyday Carry Torch, Compact, Lightweight yet Powerful Torch, 700 Lumens Neutral White Led, Hand Held Pocket Size Flashlight, Keychain Light

Fenix E16 Flashlight

Fenix Rechargeable Battery 16340 700mAh Rechargeable Lithium Ion Battery, USB Rechargeable Battery

Fenix 16340 700mAh USB Battery



Compatible Battery: 1* 16340 700mAh Li-ion Rechargeable Battery

Battery with USB Port (No external charger needed):

Fenix 16340 700mAh Rechargeable Battery with USB Port In-built

For External Battery & Charger:

 ARB L-16 Rechargeable Battery 16340 700mAh Battery                            Fenix Rechargeable Battery 16340 700mAh Rechargeable Lithium Ion Battery



 Fenix ARE X1 Charger  Single Slot Charger
Fenix Lithium Ion rechargeable battery charger, Fenix X1 Single battery charger, Portable Power bank, 18650 battery charger, Smart charger with discharging, compact charger, For single battery Flashlight torches



Charger:

Xtar Chargers in India, Multi Battery Chargers



SPECIFICATIONS
Turbo High Medium Low Moonlight
Lumens: 700 150 30 3 -
Runtime (Hours): 1 2 12 70 -
Output Modes: 3+ Brightness Levels, Strobe
Compatible Batteries: 1 x 16340, 1 x CR123A
Batteries Included: No
Included Accessories: Key Ring, Lanyard, Spare O-ring(s)
Flashlight Usage: Every Day Carry
Throw Distance (Max): 142m
LED: CREE XP-L HI
Switch Location: Body
Product Certifications: IP68
Brand: Fenix
Primary Material: Anodized Aluminum
Product Weight: 0.77oz
Product Dimensions: 2" (L) x 0.83" (Head Diameter)0.77" (Body Diameter)
UPC: 6942870306056
MPN: E16
Country of Origin: CN


Fenix E16 LED Flashlight in India, Everyday Carry Torch, Compact, Lightweight yet Powerful Torch, 700 Lumens Neutral White Led, Hand Held Pocket Size Flashlight, Keychain Light Fenix E16 LED Flashlight in India, Everyday Carry Torch, Compact, Lightweight yet Powerful Torch, 700 Lumens Neutral White Led, Hand Held Pocket Size Flashlight, Keychain Light Fenix E16 LED Flashlight in India, Everyday Carry Torch, Compact, Lightweight yet Powerful Torch, 700 Lumens Neutral White Led, Hand Held Pocket Size Flashlight, Keychain Light Fenix E16 LED Flashlight in India, Everyday Carry Torch, Compact, Lightweight yet Powerful Torch, 700 Lumens Neutral White Led, Hand Held Pocket Size Flashlight, Keychain Light Fenix E16 LED Flashlight in India, Everyday Carry Torch, Compact, Lightweight yet Powerful Torch, 700 Lumens Neutral White Led, Hand Held Pocket Size Flashlight, Keychain Light Fenix E16 LED Flashlight in India, Everyday Carry Torch, Compact, Lightweight yet Powerful Torch, 700 Lumens Neutral White Led, Hand Held Pocket Size Flashlight, Keychain Light Fenix E16 LED Flashlight in India, Everyday Carry Torch, Compact, Lightweight yet Powerful Torch, 700 Lumens Neutral White Led, Hand Held Pocket Size Flashlight, Keychain Light Fenix E16 LED Mini Compact Keychain Light in India, 700 Lumens, High performance Neutral white led Torch, EDC Light, Portable Torch Fenix E16 LED Mini Compact Keychain Light in India, 700 Lumens, High performance Neutral white led Torch, EDC Light, Portable Torch Fenix E16 LED Mini Compact Keychain Light in India, 700 Lumens, High performance Neutral white led Torch, EDC Light, Portable Torch Fenix E16 LED Mini Compact Keychain Light in India, 700 Lumens, High performance Neutral white led Torch, EDC Light, Portable Torch Fenix E16 LED Mini Compact Keychain Light in India, 700 Lumens, High performance Neutral white led Torch, EDC Light, Portable Torch Fenix E16 LED Mini Compact Keychain Light in India, 700 Lumens, High performance Neutral white led Torch, EDC Light, Portable Torch Fenix E16 LED Mini Compact Keychain Light in India, 700 Lumens, High performance Neutral white led Torch, EDC Light, Portable Torch Fenix E16 LED Mini Compact Keychain Light in India, 700 Lumens, High performance Neutral white led Torch, EDC Light, Portable Torch

Our customers are our Number One priority at LightMen LED Flashlights India.

Shipping Information:

Destinations: We Ship anywhere in India via our reputed shipping partners.

Shipping Cost: FREE!

Carriers: Blue Dart(Domestic Priority), FedEx Overnight Priority Express, DTDC(Air), Professional Courier (Premium) & First Flight.
We usually use BlueDart & FedEx for almost all our shipments, for Pin Codes which are not delivered by BlueDart & FedEx, are catered via First Flight | DTDC or Professional Courier.

ALL ORDERS RECEIVED BEFORE 2PM ON WEEKDAYS, ARE SENT VIA BLUEDART AND ALL OTHER ORDERS RECEIVED AFTER 2PM ARE CATERED BY OTHER COURIERS*.

Holidays: Sundays and Public Holidays, even though orders might be processed, shipping cannot be done.

Tracking: For all Shipping options that we provide, tracking is available on the carrier website using the Waybill number provided by us once the order is fulfilled.
Orders, for which payments are confirmed before 11:00 AM IST, shipping is done on the same day. If, payment is confirmed after 11:00 AM IST, orders will be shipped out first hour on the next working day.

If there is any emergency requirement for shipping, do let us know so we can do the needful on the same day, whatever that is - while we do not promise anything, we try to do our best for such emergency requirements. We go the extra mile when there is need. Speaking to us directly will help us serve better for such orders.

(Call us on +91-9849000777 and we'd do everything we can to fulfill your order on time.)

We take 100% responsibility on the shipping, a product broken due to shipping will be replaced immediately.This has to be notified within 1-day of arrival and the product has to be sent back to us for examination so that we can verify and replace the item. While we try to be proactive and provide world-class support, there might be instances of delay.

Delivery Times:

Tier I Metros - 1 day |  Tier II Cities - 1-2 days | other cities and towns: 2-4 days

Feel free to call us anytime, +91-9849000777 We'd be happy to help.

Happy Shopping!

Feel free to write to us on support@lightmen.in if you have questions or clarifications, we assure to get back to you within 24-48 hours maximum with a resolution to your query.

* : Payment must be approved by bank as successful. We ship items ONLY upon successful payment confirmation from our bank.

Shipping Partner's:



Warranty Details:

If you have a Fenix/Nitecore product that you do not feel performs to your expectations, please return the product to us, we will repair/replace as per our warranty set out below.

LightMen India warrants that following purchase, each Fenix/Nitecore Product will be free from defects in materials and workmanship under normal use for a period of upto 5 years.
LightMen is not responsible for any damage or failure resulting from any abuse, misuse, accident, or negligent act or omission by you or by any third party, or for acts of nature.
Unauthorised repair or attempts to service the unit will invalidate the warranty.
Non-compliance with your products instructions will invalidate the warranty.
For service of the unit under warranty, please return your product to your dealer or contact us directly at LightMen.
In the event of returning the product under warranty, please use sufficient protective packaging. Insufficient packaging resulting in damage will invalidate the warranty.
Any product not meeting LightMen's warranty criteria will only be repaired/replaced at the sole discretion of LightMen LED Flashlights, India.
Please note that every Fenix/Nitecore product is serial numbered for identification.
We can only provide warranty service for Indian serial numbered products supplied through us or via our channel only.

    Returns:

    Should you need to return a Fenix product to us, please send to:
    LightMen India
    3-6-526, 3rd Floor,
    301/302/303 & 304,  Eldarado Estates,
    Opp: Minerva Coffee Shop, Behind GKP Opticals,
    Hyderabad - 500029
    Telangana, India.
    (M) +91-9849000777 | Email: support@lightmen.in

    Please return within 15 day's of receipt for a refund, credit or exchange.
    The item and packaging must be in new condition and all originally supplied accessories included.

    Please pack the item well to avoid postal damage. Insured postage is recommended as we can only issue credit on items received.

    A copy of your receipt and a note stating the reason for return should also be included.
    Please contact us before returning an item for a returns reference number(product/customer identification.)

      Battery & Charger :
      Please note that replacements and repair is not applicable for batteries and chargers for various reasons like dropping the batteries, inserting batteries in reverse while charging, voltage fluctuations. This could damage both the batteries and the charger. Also, please read the manuals provided(if any) with the flashlight to understand which way to insert the batteries into the lights. (For flashlights, if its not mentioned, its mostly positive first, meaning positive towards the LED). However, all batches of batteries and chargers are checked randomly by our team to see if there are issues with quality.

      Batteries and chargers if reported dead/faulty on arrival(or within the first one week of arrival) can be replaced if found no abuse, these have to be returned to us for inspection, if found no abuse, replacement would be sent - return shipping charges(one way) would be paid by us.

      Payment's:

      Payment Options for LightMen LED Flashlights India

      CLICK HERE FOR MORE INFORMATION ON PAYMENT's ACCEPTED

      Payment modes:

      - Credit Cards / Debit Cards / Net Banking (Through Secured Payment Gateway Partner - Direct Pay

      Note: we do not capture any info about your credit card or bank account, you will be redirected to the payment partner processing page which is a secured and encrypted page where you can give your payment details. You will be redirected back to www.ledflashlights.in once the payment is processed.

      Other payment modes available on request:
      - NEFT / RTGS / Bank Transfer
      - Cheque / DD
      - Cash Deposit
      (These payment modes are available for wholesale orders and dealers only and some special request orders, this process might take more time than online orders, Please contact us for this option)

      If anything on this page is unclear, please feel free to ask us.

      ✆ : +91-9849000777

      Customer Reviews

      Based on 2 reviews
      100%
      (2)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      S
      S.G.
      Great little light.

      Purchased from Lightmen via Amazon. Superb upgrade to my E15 - smaller, better built and the neutral white light is so much better and more natural. Memory function ensures it always comes on in the last used mode, which was my biggest dislike about the E15, as it did not have last mode memory.

      The only downside is it heats up and starts ramping down the brightness very quickly, so you don't get the maximum lumens for long. Still, for a tiny keychain light, it's more than enough and startles the hell out of everyone! The strobe feature is also very useful, especially if you're hiking anywhere near wild animals.

      NOTE: I chose the E16 over the E18r because it's smaller and fits easier in the pocket (barely any difference in the brightness). Also, didn't see the point of buying a bulkier and more expensive rechargeable flashlight when nowadays the batteries themselves can be charged via micro USB cable without need for a charger. Just get a couple of Fenix micro-usb rechargeable 16340 batteries and you're sorted.

      R
      R.G.R.
      Great Light

      Fantastic Light

      Recently Seen:

      Customer Reviews

      Based on 2 reviews
      100%
      (2)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      S
      S.G.
      Great little light.

      Purchased from Lightmen via Amazon. Superb upgrade to my E15 - smaller, better built and the neutral white light is so much better and more natural. Memory function ensures it always comes on in the last used mode, which was my biggest dislike about the E15, as it did not have last mode memory.

      The only downside is it heats up and starts ramping down the brightness very quickly, so you don't get the maximum lumens for long. Still, for a tiny keychain light, it's more than enough and startles the hell out of everyone! The strobe feature is also very useful, especially if you're hiking anywhere near wild animals.

      NOTE: I chose the E16 over the E18r because it's smaller and fits easier in the pocket (barely any difference in the brightness). Also, didn't see the point of buying a bulkier and more expensive rechargeable flashlight when nowadays the batteries themselves can be charged via micro USB cable without need for a charger. Just get a couple of Fenix micro-usb rechargeable 16340 batteries and you're sorted.

      R
      R.G.R.
      Great Light

      Fantastic Light

      Search

      Just added to your cart:
      Qty:
      Total:
      Subtotal:
      Excl. postage
      My Bag
      Just added to your wishlist:
      Excl. postage
      My Wishlist

      ANSI /NEMA FL-1 Standard

      OUTPUT

      RUNTIME

      DISTANCE

      INTENSITY

      IMPACT RESISTANCE

      WATER RESISTANCE



      ANSI/NEMA FL-1 standard
      American National Standards Institute

      Fenix Has Implemented the ANSI Standard for measuring performance and quality across our product range

      This refers to:
      OUTPUT
      RUNTIME
      DISTANCE
      INTENSITY
      IMPACT RESISTANCE
      WATER RESISTANCE

      Sections
      Ⅰ.A brief introduction of ANSI/NEMA FL1-2009 Standard
      Ⅱ.Why was it created?
      Ⅲ.Who approved the standard?
      Ⅳ.What does it mean to consumers and distributors?
      Ⅴ.The descriptions of the contents
      Ⅵ.How will Fenix use it?

      Ⅰ.A brief introduction to the ANSI/NEMA FL 1-2009 Standard
      American National Standards Institute (ANSI for short) was established in 1918. It is a non-profit non governmental standards institute.
      ANSI is one of the five permanent members in International Standardization Organization (ISO for short) as well as one of the four permanent members in the
      International Electrotechnical Commission (IEC for short). It takes part in 79% activities of ISO/TC and 89% activities of IEC/TC. ANSI is a member of COPANT and PASC respectively.
      ANSI is the potential national standards institute and actually it has turned into the national standards center. Various standardizing activities have connections with
      it. In the meantime, the ANSI Standard has been voluntarily adopted.

      Ⅱ.Why was it created?
      For a long time, there had been no standardized tests or uniform rating systems for consumers to judge flashlight performance.
      Without any uniform rating systems, it frustrated the manufacturers who were working hard to make high quality lighting tools.
      The establishment of ANSI/NEMA FL 1-2009 Standard allowed consumers to compare flashlight performance.
      The standard provides a guide for consumers to rate and compare the claims on the packages for each manufacturer’s products.
      Distributors and consumers are more informed. Therefore, it is much easier for them to make the best choices for their needs.

      Ⅲ.Who approved the standard?
      American National Standards Institute (ANSI for short)
      National Electrical Manufactures Association (NEMA for short)
      Representatives from 14 illuminating companies, such as Princeton, Surefire, Petzl, Streamlight, Black Diamond and Duracell, etc.
      Representatives from flashlight users and flashaholics

      Ⅳ.What does it mean to consumers and distributors?
      The ANSI Standard helps the consumers know about the technical parameters of flashlights quickly which allows them to make a comprehensive comparison of various flashlights.
      It can provide a guide for distributors and end users to know more about the products and make the best choices for their needs.
      It evens the playing field for those manufacturers that participate.
      It’s important to know that adherence to these standards and reporting results is strictly voluntary.
      Many leading flashlight manufacturers are now adopting the standard.

      Ⅴ.Description Of Test Conditions
      The testing contents of ANSI Standard include light output, runtime, beam distance, peak beam intensity, impact resistance and water resistance.

      1.Output:
      A measurement of the total quantity of emitted overall light energy as measured by integrating the entire angular output of the portable light source. The result is
      reported in lumen.
      Purpose:
      To provide a procedure for the measurement of the quantity of overall light energy emitted by the device.
      Power resource:
      All tests are conducted with fresh batteries or fully charged batteries/energy storage devices.
      12V DC devices that are only tethered shall be powered with 13.8V DC using a power supply.
      Batteries used for testing and claim substantiation shall be of the same type and/or brand as those offered for sale with the product.
      If the product is sold without batteries and a light output claim is made, a specific battery type and chemistry shall be recommended with the package.
      The batteries recommended by the manufacturer are to be used for testing.
      Procedures:
      Devices are to be mounted or held against an external port adapter or placed inside the sphere. Exposure should be set to produce test equipment manufacturer’s
      detector saturation level.
      Results:
      Light output is the average lumen value of the 3 samples.

      2.Runtime:
      The duration of time from the initial light output value (that’s 30 seconds after the light is turned on with fresh batteries ) until the light output drops to 10% of the initial value.
      Purpose:
      To determine the amount of time elapsed (under continuous operation) at which the device’s light output reaches a level when users will commonly replace the batteries.
      Conditions:
      If the device offers multiple output levels, the runtime will be measured at the maximum level or as otherwise identified.
      Procedures:
      The initial reading is taken at 30s of continuous operation when using a luxmeter, ensure that the light is operated continuously without any off time.
      ANSI/NEMA FL-1 standard

      3.Beam Distance:
      The distance from device at which the light beam is 0.25 lux.
      Results are reported in meters.
      Purpose:
      To provide a procedure to determine the maximum distance at which the devices is capable of producing 0.25 lux of light within 30s to 2 min of operation.
      Procedure:
      Place the luxmeter at a test distance of either 2 or 10 or 30 meters from the lens of the device to be tested. Use the luxmeter to identify the brightest point of the beam pattern and record the highest indicated value.

      Final calculation:
      To determine the beam distance, the Inverse Square Law formula is used:
      √( peak beam intensity (cd) /0.25 (lux)) = Max Beam Distance (m)

      4.Peak Beam Intensity:
      Peak beam intensity is the maximum luminous intensity typically along the central axis of a cone of light. The value is reported in candela and does not change
      with distance.
      Purpose:
      To provide a procedure to determine the peak beam intensity, reported in units of candela, of the device’s beam pattern within 30s to 2 min of operation.
      Procedure:
      Place the luxmeter at a test distance of either 2 or 10 or 30 meters from the lens of the device to be tested. Use the luxmeter to identify the brightest point of the beam
      pattern and record the highest indicated value. Results are reported in candela.
      Measurements shall be taken 30s to 2 min of turning on the device.

      Final Calculations:
      Surface light intensity (lux) x distance (m)2 = peak beam intensity (cd)

      5.Impact Resistance:
      The degree to which a portable light resists damage when dropped on a solid surface. Dropped samples must not exhibit any cracks or breaks, and must remain fully functional in order to pass the impact resistance test.
      Purpose:
      To ensure the structural integrity of hand-held/portable lighting devices under specified impact conditions.
      The test procedure provide specifications and methods that will ensure products meet a minimum standards of reliability as a result of impact testing.
      Drop test should be a priority to any other reliability tests.
      Drop Test:
      Products are dropped with all intended additions: batteries ,elastic, tethers, hand straps, etc.
      Drop height for product samples shall be 1m minimum.
      When measured, all the requirements listed below must be passed:

      Each sample is dropped 6 times using impact orientations that approximate a cube.
      Samples must be marked prior to the drop test in a manner that can assure that all 6 drop orientations are tested.
      Each sample must be released on each orientation of the approximated cube. Samples should be in the “off” position with batteries in place.

      Passing Criteria:
      Dropped samples must not exhibit any cracks or breaks visible with normal vision.
      The product must remain fully functional.
      Some reassembly is allowed provided that is done without any tool or replacement components.
      Cosmetic defects such as scuffs, scratches, rubs, abrasion will not be considered reasons for failure.

      Impact Resistance Rating:
      Test samples must pass a drop test from a minimum of 1m in order for the impact resistance claim to be made.
      Rating in excess of 1m shall be reported with values rounded down to the nearest whole meter.

      6. Water Resistance:
      Purpose:
      To test whether the flashlight water resistance can satisfy the lowest requirements for the reliability.
      Procedure:
      All test samples shall function normally immediately after the test and 30 min after the test.
      Water ingress is allowed as long as the above conditions are met.

      Water Resistance:
      There are three tests that measure water resistance:

      Resistance to Temporary Immersion in Water
      Resistance to Continuous Immersion in Water
      Resistance to Splashing Water

      Ⅵ. How will Fenix use ANSI?
      1. Fenix will strictly adhere to the ANSI Standard to measure the various fundamental features of its products.

      Fenix will spare no efforts to provide more reliable products and perfect services. The consumers can better evaluate, compare and choose their products provided that they know about the output, beam distance, impact resistance, water resistance and the runtime.
      In order to meet this target, Fenix was the first manufacturer to participate in the ANSI/NEMA FL1-2009 Standard in China.
      It will adhere to ANSI/NEMA FL1-2009 Standard with its products.
      For instance, the ANSI Standard was introduced to E21, LD25, LD40 and HP20.
      Later products continue to be line with the ANSI Standard.

      A. In line with the ANSI Standard, Fenix tests the output and runtime.

      Output Testing

      Output Test: Devices are to be mounted or held against an external port adapter or placed inside the sphere.
      Exposure should be set to produce test equipment manufacturer’s detector saturation level.
      Light output is the average lumen value of the 3 samples.

      Runtime Test: The duration of time from the initial output value ( that’s 30 seconds after the light is turned on with fresh batteries) until the light output drops to 10% of the initial value.
      Ensure that the light is operated continuously without any off time.

      B. According to the ANSI Standard, Fenix tests the beam distance.

      Beam Range Testing

      Beam Distance Test: To place the luxmeter at a test distance of either 2 or 10 or 30 meters from the lens of the device to be tested.
      Use the luxmeter to identity the brightest point of the beam pattern and record the highest indicated in value.
      To determine the beam distance, the Inverse Square Law formula is used:
      √( peak beam intensity (cd) /0.25 (lux)) = Max Beam Distance (m)

      C. Fenix tests the peak beam intensity, abiding by the ANSI Standard.

      Beam Intensity Testing

      Peak Beam Intensity test: Place the luxmeter at a test distance of either 2 or 10 or 30 meters from the lens of the device to be tested.
      Use the luxmeter to identify the brightest point of the beam pattern and record the highest indicated value.
      Results are reported in candela.
      Measurements shall be taken 30s to 2 min of turning on the device.

      D. Fenix tests the impact resistance according to the ANSI Standard.

      Impact Resistance Test:
      Samples should be in the “off” position with batteries in place.
      Each sample is dropped 6 times using impact orientations that approximate a cube.
      Each sample must be released on each orientation of the approximated cube.
      Test samples must pass a drop test from a minimum of 1m in order for the impact resistance claim to be made.
      Dropped samples must not exhibit any cracks or breaks visible with normal vision.
      Cosmetic defects such as scuffs, scratches, burs, abrasion will not be considered reasons for failure.

      E. With the ANSI Standard , Fenix tests the water resistance.

      Water Resistance Test:
      All test samples shall function normally immediately after the test and 30 min after the test.
      Water ingress is allowed as long as the above conditions are met.

      2. Fenix carries out other tests.

      Besides the ANSI Standard and to allow for consumers’ various real life usage conditions, Fenix performs other tests set by itself, such as the salt spray test, bending test, vibration test, ultraviolet radiation test, etc.
      Only the products which completely meet the ANSI Standard and its internal standards can be called Fenix products.

      A. Shakeout Test
      Shakeout test: To provide a procedure to determine the scratch-resistant and wear-resistant abilities of the surface of flashlight.

      B. Bending Test
      Bending test: mainly use to test the bending degree and the strength of wires.

      C. Salty Spray Test
      Salty spray test: mainly use to test the corrosion-resistant ability.

      Salt Spray Corrosion Testing

      D. Ultraviolet Radiation Test
      Ultraviolet radiation test: mainly use to test the changes of flashlight after it goes through the ultraviolet test.

      E. Environmental Test
      The environmental test includes the high temperature test and low temperature test, which are used to test the high-temperature-resistant and the low-temperature-resistant abilities respectively.

      Temperature testing

      F. Vibration Test
      Vibration test: To provide a procedure to determine the anti-vibration ability.

      Vibration Testing

      G. Switch Test
      Switch test: To provide a procedure to determine the lifespan of the switch and the resistivity.

      H. Temperature Test
      Temperature test: To provide a procedure to determine the conditions of the heat generation and the heat dissipation and the relevant temperatures, etc.

      Internal Temperature Testing

      Fenix has introduced the ANSI Standard to its new products. All technical parameters of the products, such as E21, LD25, LD40 and HP20, were produced in line with the ANSI Standard. As a result the output and the runtime figures have become much more accurate and scientific. Later products have been produced in line with the standard to meet the international needs.

      3. Fenix has introduced the ANSI Standard to its product packages.

      Product Packaging Markings

      Fenix now records ANSI test results on its product packaging to allow customers to quickly understand the product capabilities.

      4. Fenix has introduced the standard to the product manuals.

      Fenix has made some modifications to its product manuals. The modifications help the consumers to easily identify, compare and rate the flashlights. Fenix will continue to report the ANSI Standard of its later products to meet the international consumer needs.

      5. The description of the flashlight tests.

      All tests are conducted with fresh batteries or fully charged batteries /energy storage devices.
      12V DC devices that are only tethered shall be powered with 13.8V DC using a power supply.
      Peak beam intensity and beam distance are both measured by the same test.
      To provide a procedure to determine the peak beam intensity, reported in units of candela, of the device at which the light beam is 0.25 lux within 30 seconds to 2 minutes of operation.
      Batteries used for testing and claim substantiation shall be of the same type and/or brand as those offered for sale with the product.
      If the product is sold without batteries and a peak beam intensity claim is made, a specific battery type and chemistry shall be recommended with the package.
      Lab conditions shall be a controlled temperature of 21±2℃ and a relative humidity of 50±40%. The lab environment must minimize any redirecting of light that would affect the measurement outcome.
      If the device offers multiple focusing or adjustable beam angle, the peak beam intensity will be measured at the maximum level or as otherwise identified.
