Rs. 5,500.00

900 Lumens | Tactical Flashlight | 1* 18650 Battery | Battery Not Included

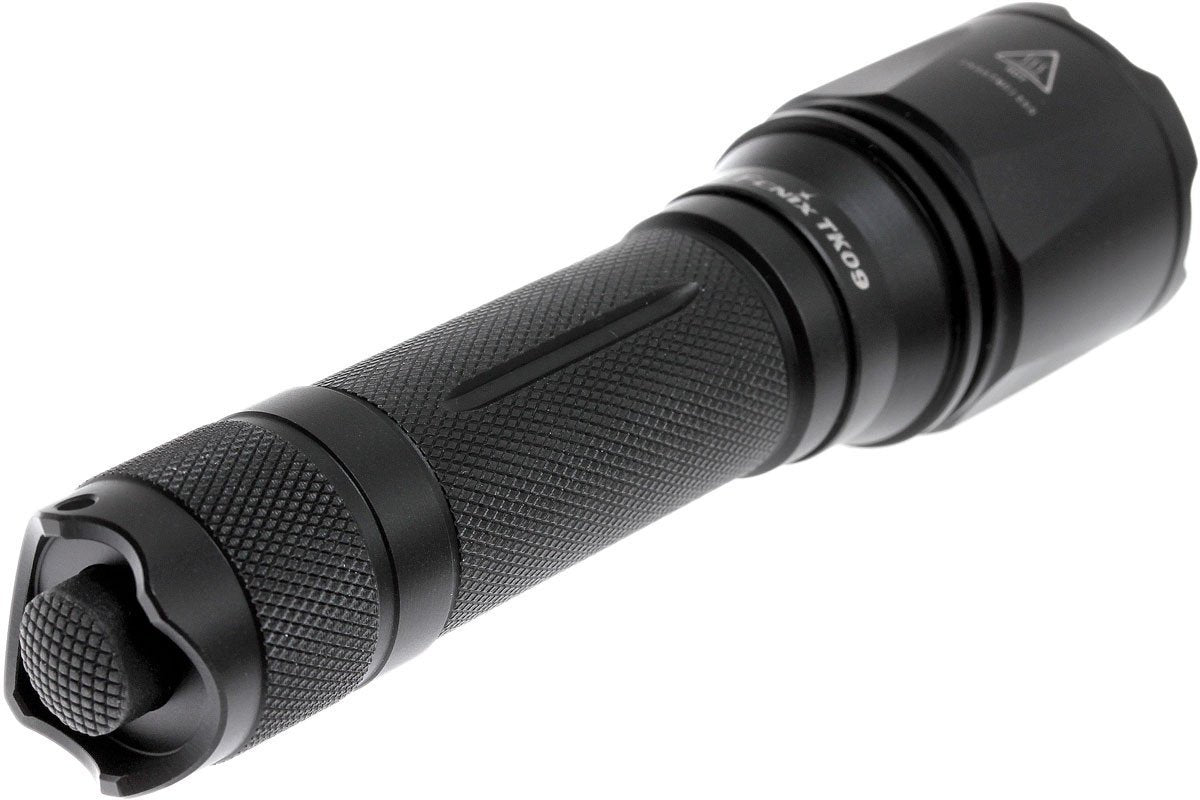

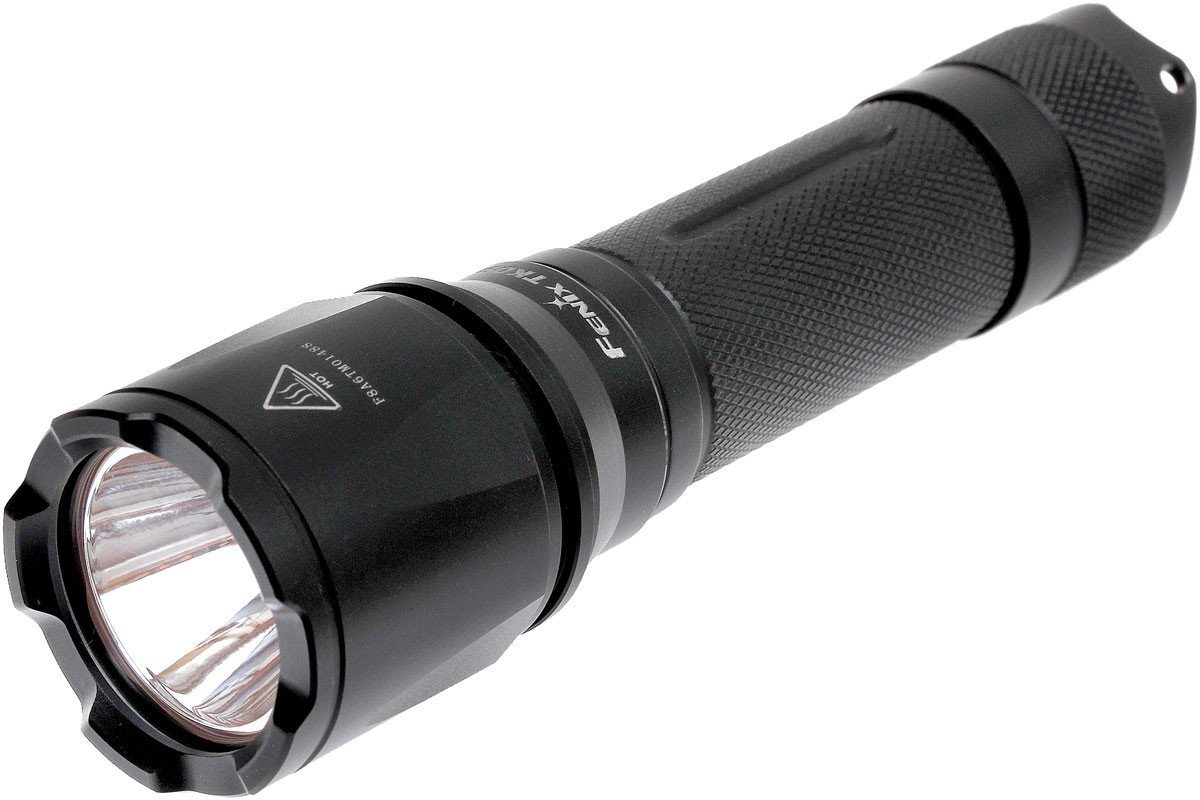

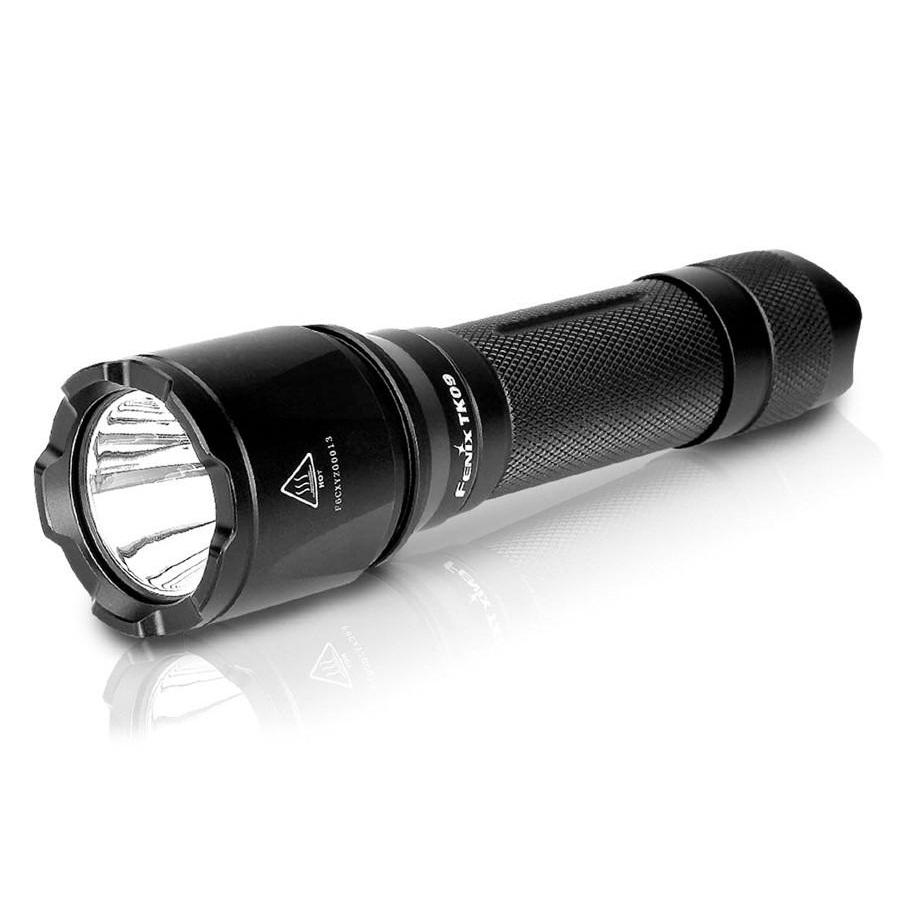

Fenix TK09 2016 Edition Flashlight

The TK09 XPL is now available from Fenix in a brand-new edition for the new year, 2016. While it has kept the classic features of other Fenix TK flashlights, this time, it takes those classic features, and improves on them for a more satisfying and a more rewarding user experience. The lumen output rates on the TK09 are: 900 lumens on High; 450 lumens on Medium; and 50 lumens on Low. There is a strobe mode on this flashlight, the output rate of which is 900 lumens. The run times on the TK09 are the following: 1h 25 min. for High (after five minutes, drops down to Medium mode to prevent overheating); 4h 55 min. for Medium; and 37h for Low. The beam/throw distance for all modes is 310m, and the Candela rate/Peak beam intensity for all modes is 24,000cd. The impact resistance of the TK09 is 1m, so you can drop it and you can feel assured that it won't be damaged, and it is also IPX-8 rated, so it will function even when heavily doused with water (up to 2m).

Be Quick and Effective in any and all Tactical Situations

Features:
  • Now available in brand-new edition for new year, 2016: improved for a more satisfying and rewarding user experience
  • Lumen outputs:
    • High: 900 lumens (turns down to Medium after 5 min.)
    • Medium: 450 lumens
    • Low: 50 lumens
    • Strobe: 900 lumens
  • Run times:
    • High: 1h 25 min.(turns down to Medium after 5 min.)
    • Medium: 4h 55 min.
    • Low: 37h
  • Beam/throw distance for all modes is 310m
  • Candela rate/Peak beam intensity for all modes is 24,000cd
  • Impact resistance is 1m, won't be damaged even after being dropped
  • IPX-8 rated, will function even when heavily doused with water (up to 2m)
  • Light source is CREE XP-L HI LED bulb, will power flashlight for 50,000h
  • Battery source is either two CR123A lithium primary cells, or single 18650 rechargeable lithium-ion (li-ion) cell
  • Tailcap is push-button style, meant for quickness and effectiveness in tactical situations
  • There is a strobe mode on this flashlight, output rate is 900 lumens
  • Lumen output is digitally adjusted
  • Has reverse polarity protection
  • Construction consists of solid, high-quality Type III hard-anodized, non-abrasion aircraft-grade aluminum casing
  • Lens built of extremely clear, hardened glass, contains non-reflective finish
  • Has over-heating protection
  • Warranty is Fenix's five-year warranty
  • Nice little accessories included with flashlight, like holster, one spare O-ring, extra rubber boot switch, and lanyard
Specifications:

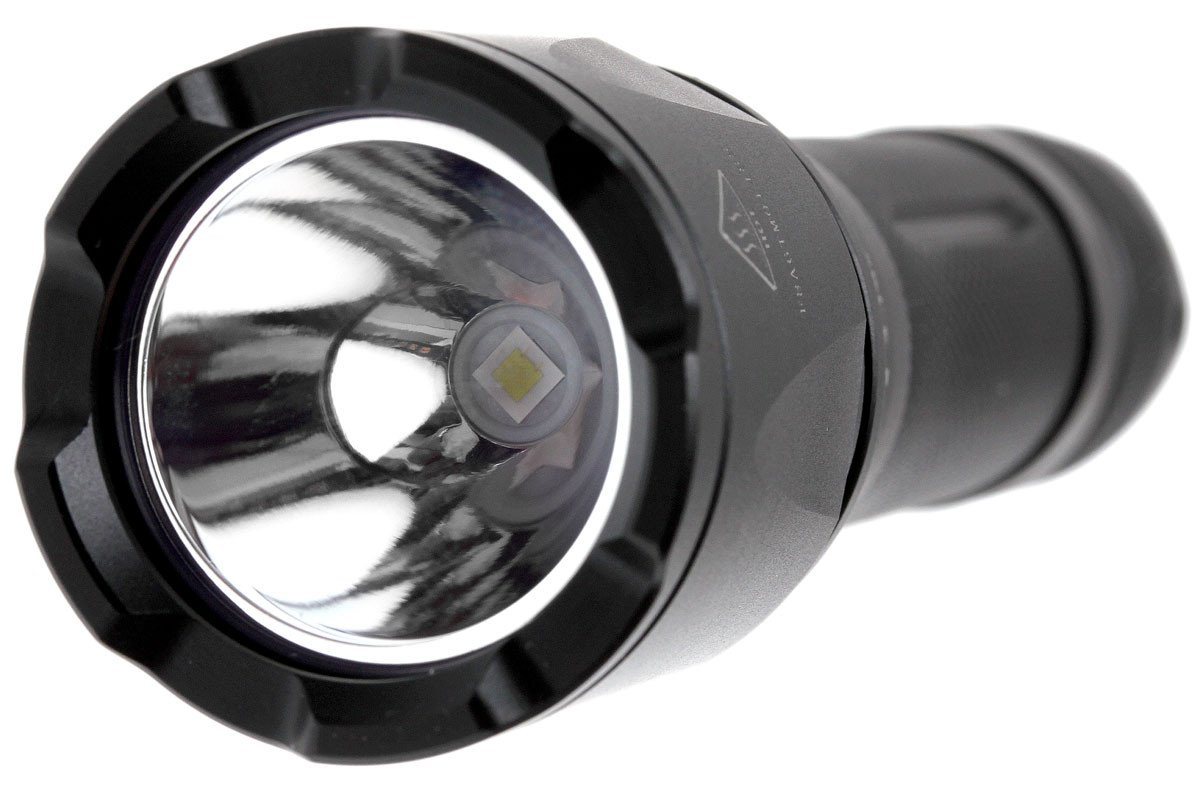

  • Light source: CREE XP-L HI LED
  • Battery source: Two CR123A lithium primary cells or one 18650 lithium-ion (li-ion) rechargeable battery
  • Material: Hard-anodized, non-abrasion, aircraft-grade aluminum
  • Lens: Extremely clear, hardened glass, contains non-reflective finish
  • Strobe mode: Yes
  • IPX rating: 8
  • Impact resistance: 1m
  • Candela rate/Peak beam intensity: 24,000cd
  • Beam/throw distance: 310m
  • Warranty: Fenix five-year warranty

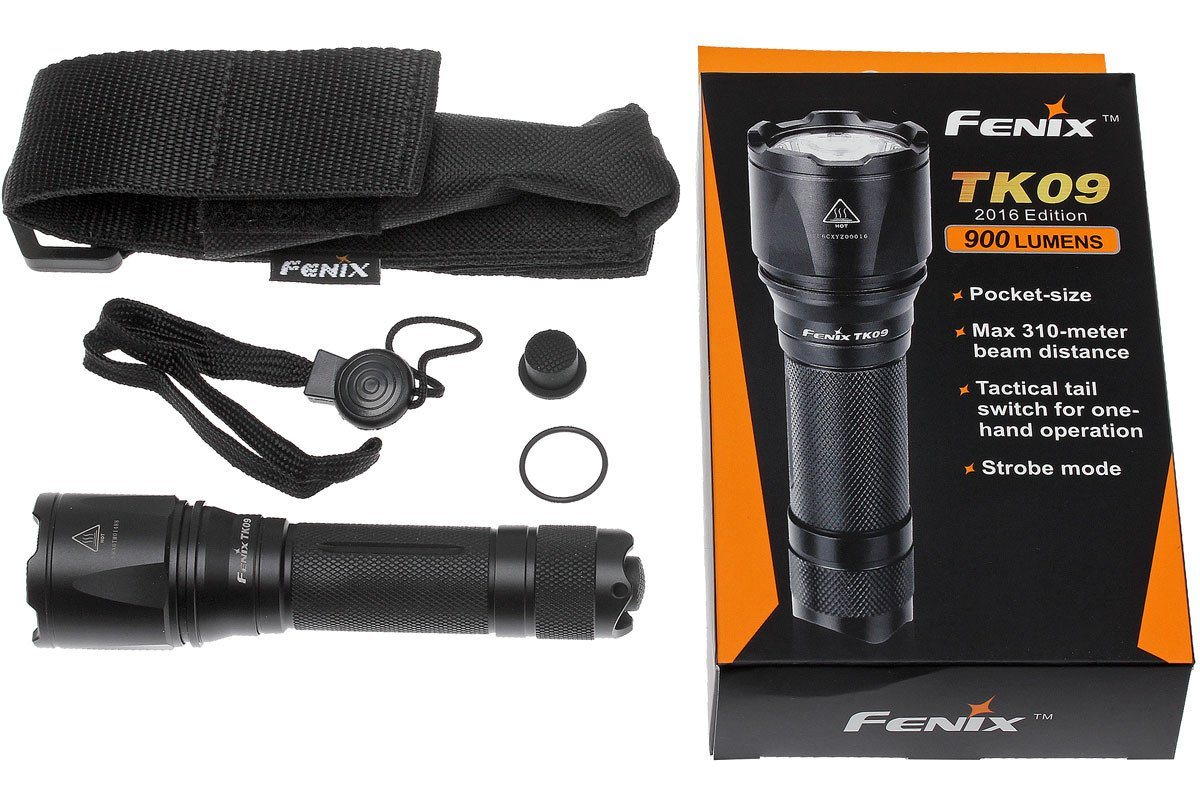

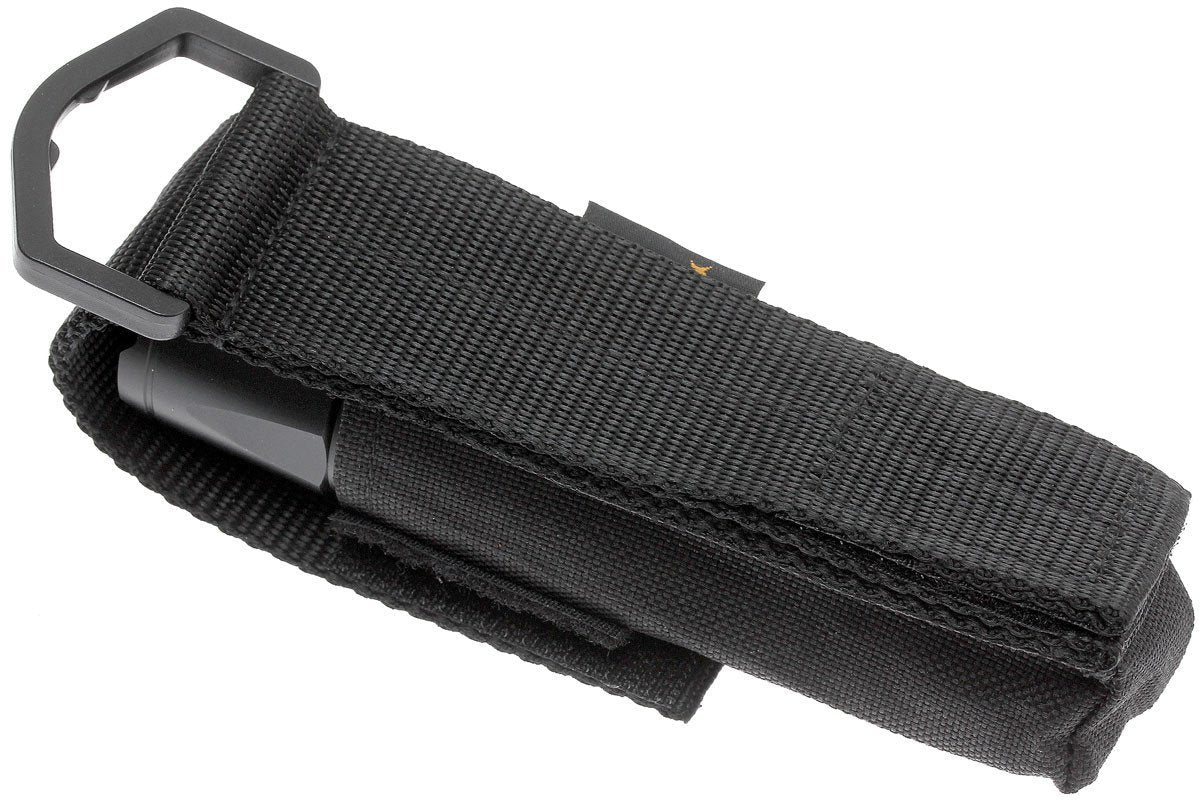

  • Included accessories: Holster; spare O-ring; extra rubber boot switch; lanyard
  • Dimensions:
    • Length: 5.12 in./130mm
    • Body diameter: 1 in./25.4mm
    • Head/bezel diameter: 1.39 in./34mm
    • Weight (without battery): 3.70 oz./105g



1pc 18650 Battery & Charger to be bought Separately

Combo Pack (Set):

Fenix TK09, Tactical Led Flashlight, Compact Hand-held Led Torch, Buy Tactical Flashlight online in India
Fenix TK25  Flashlight
Fenix 18650 2600u USB Rechargeable Battery, Fenix 2600u battery, ARB-L18u Battery in India, Lithium-ion Rechargeable battery in India

Fenix TK09, Tactical Led Flashlight, Compact Hand-held Led Torch, Buy Tactical Flashlight online in India

Fenix TK25 Flashlight

Fenix 18650 3500u USB Rechargeable Battery, Fenix 3500u battery, ARB-L18u Battery in India, Lithium-ion Rechargeable battery in India

1pc Fenix 3500mAh USB Battery



1pc 18650 Battery & Charger to be bought Separately

BATTERY & CHARGER TO BE BOUGHT SEPARATELY (External)



Fenix Battery Option:

Fenix ARB-L18

18650 2600mAh

Battery

Fenix 2600mAh battery, Fenix 18650 battery, Buy Fenix battery online in India, Lithium Ion rechargeable batteries, Batteries for Flashlights, Torches, headlamps, Camping Lights
Fenix ARB-L18

18650 3400mAh

Battery

Fenix 3400mAh battery, Fenix 18650 battery, Buy Fenix battery online in India, Lithium Ion rechargeable batteries, Batteries for Flashlights, Torches, headlamps, Camping Lights
Fenix ARB-L18

18650 3500mAh

Battery

Fenix 3500mAh battery, Fenix 18650 battery, Buy Fenix battery online in India, Lithium Ion rechargeable batteries, Batteries for Flashlights, Torches, headlamps, Camping Lights



Fenix Charger Option:

Fenix ARE X1

Single Slot

Battery Charger

Fenix Lithium Ion rechargeable battery charger, Fenix X1 Single battery charger, Portable Power bank, 18650 battery charger, Smart charger with discharging, compact charger, For single battery Flashlight torches
Fenix ARE X2

Two Slot

Battery Charger

Fenix ARE X2 Two Slot Rechargeable Lithium Ion Battery Charger
Fenix ARE C1+

Two Slot

Battery Charger

Fenix ARE C2+ two slot smart charger for rechargeable lithium ion batteries
Fenix ARE C2+

Four Slot

Battery Charger

ARE C2+ Four Slot smart charger for rechargeable lithium ion batteries



COMPAITABLE ACCESSORIES:

Fenix ALC-01

Belt Clip Holster

Fenix Belt Clip Holster, Hands free Flashlight Carrier, Flashlight Holder, Durable, Lightweight and everyday carry Holster

Fenix AOT M

Traffic Wand

FENIX AOF-M

Color Filters

Fenix AOF, Color Filters for Fenix Flashlights, Red Green Blue Color Filters for LED Torch in India

Fenix AOD M

Diffuser Tip

Fenix AOD-M Diffuser for Flashlight in India, Diffuser Tip for Torch

Fenix AER 02

Remote Pressure Switch

Fenix ALB 10

Bike/Bicycle Mount

Fenix ALB-10, Bike Mount, Flashlight accessory, Touch and durable, Bicycle Mount, Flashlight Holder on Bike/Bicycle



SPECIFICATIONS:

Turbo High Medium Low Moonlight
Lumens: 900 900 450 50 -
Runtime (Hours): - 1.42 4.92 37 -
Output Modes: 3+ Brightness Levels, Strobe
Compatible Batteries: 1 x 18650, 2 x CR123A
Batteries Included: No
Included Accessories: Holster, Lanyard, Spare O-ring(s), Spare Tailcap Boot
Flashlight Usage: Emergency Supplies, Every Day Carry, Tactical, Worklights
Throw Distance (Max): 310m
LED: CREE XP-L HI
Switch Location: Tailcap
Product Certifications: ANSI
Brand: Fenix
Primary Material: Anodized Aluminum
Product Weight: 3.7oz
Product Dimensions: 5.12" (L) x 1.39" (Head Diameter)1" (Body Diameter)
UPC: 6942870303727
MPN: TK09-2016
Country of Origin: CN
