Rs. 8,000.00

1800 Lumens | Bicycle Light | 2* 18650 Battery | Battery Not Included

FREE Shipping via FedEx Over Night Priority.
- 2 x CREE XM-L T6 Neutral White LED Bicycle Light
- Powerful 1800 Lumens - Dual Distance Beam - 170mts Throw
- 4 Bightness Levels + Strobe, Instand Burst mode remote switch
- Powered by two 18650 Rechargeable Li-ion Batteries (Buy Separately)

Fenix BC30

Ultra-High Intensity Bike Light

Introducing Fenix's brightest LED bike light to date, the BC30, which is able to produce a skin melting 1800 lumens at any instant via the remote pressure switch. Constructed from aero-grade aluminum alloy and plastic, the BC30 is IPX-6 water resistant. That means when you're caught in heavy rain or thick fog, the BC30 will not have a hard time cutting through that. The light can be adjusted between 0-30 degrees horizontally and any way vertically, giving you ultimate control as to what's in front of you. The quick-release mounting system makes attaching and detaching the BC30 a breeze, so you can focus on your ride.

Lighting Technology

Dual Distance Beam

The BC30 is equipped with not one, but two CREE XM-L2 LEDs that will produce between 100 to 1800 lumens. You can instantly get to the 1800 lumen output by the remote pressure switch, for those dark and unexpected areas. The efficient total reflection lens produces superior beam width while reaching over 170 meters. Utilizing the dual distance beam, the BC30 is perfect for close-in visibility as well as long-range illumination. The full metal housing and unique ribbed shape allows for better heat dissipation and higher reliability, so you are not left stranded somewhere.

Power

Low-Voltage Warning Function

Powering this extremely bright bike light are either four CR123A batteries or two 18650 cells. The innovative quick-change battery system allows for a fast and easy swap of batteries. No need to worry if the batteries are low while you're out on the road because there is a low voltage warning function that will turn from green to red to remind you replacement. Just keep a couple of extra batteries with you while you are out and about. The BC30 will downshift to a lower brightness level to maintain illumination until the battery power in completely used.

Features:
  • Dual distance beam system
  • Instant burst activation with the remote pressure switch
  • Close-in visibility and long-range illumination
  • 0-30 degree horizontal adjustment and any vertical adjustment
  • Easy, secure adjustment of the light's direction
  • Quick-release mounting system
  • Quick attach and detach handlebar mount sized for 22mm-35mm handlebars
  • High quality rubber mat provides shock-resistant and slip-resistant grip
  • Constructed from aero grade aluminum alloy and plastic
  • Low-voltage warning function
  • Innovative quick-change battery system for fast and easy battery replacement
  • Water resistant in accordance with IPX-6 standards
  • Included Accessories: handlebar mount, handlebar mount shims, remote pressure switch, and spare O-rings
Specifications:
  • LED: 2x CREE XM-L2 Neutral White
  • Runs on: 4x CR123A or 2x 18650 (Batteries NOT included)**
  • Output mode/Runtime:
    • Turbo: 1200 lumens / 1.83hrs
    • High: 500 lumens / 5hrs
    • Mid: 200 lumens / 11hrs
    • Low: 100 lumens / 20hrs
    • Instant Burst: 1800 lumens
    • Strobe: 200 lumens
  • Max Beam Distance: 170 meters
  • Dimensions:
    • Length: 4.98" (126.7mm)
    • Width: 1.96" (50mm)
    • Height: 1.25" (31.8mm)
  • Weight: 5.68 oz (161g) (excluding batteries and handlebar mount)



Combo Pack (Set):

Fenix BC30 LED Flashlight @ lightmen led flashlights india

Fenix BC30 Bike Light

Fenix 2600mAh battery, Fenix 18650 battery, Buy Fenix battery online in India, Lithium Ion rechargeable batteries, Batteries for Flashlights, Torches, headlamps, Camping Lights
Xtar VC2+ Charger

Fenix BC30 LED Flashlight @ lightmen led flashlights india

Fenix BC30 Bike Light

Fenix 3500mAh battery, Fenix 18650 battery, Buy Fenix battery online in India, Lithium Ion rechargeable batteries, Batteries for Flashlights, Torches, headlamps, Camping Lights

2pc Fenix 3500mAh Battery



Xtar VC2+ Charger


BATTERY & CHARGER TO BE BOUGHT SEPARATELY (COMBO)

Fenix Battery Option:

Fenix ARB-L18

18650 2600mAh

Battery

Fenix 2600mAh battery, Fenix 18650 battery, Buy Fenix battery online in India, Lithium Ion rechargeable batteries, Batteries for Flashlights, Torches, headlamps, Camping Lights
Fenix ARB-L18

18650 3400mAh

Battery

Fenix 3400mAh battery, Fenix 18650 battery, Buy Fenix battery online in India, Lithium Ion rechargeable batteries, Batteries for Flashlights, Torches, headlamps, Camping Lights
Fenix ARB-L18

18650 3500mAh

Battery

Fenix 3500mAh battery, Fenix 18650 battery, Buy Fenix battery online in India, Lithium Ion rechargeable batteries, Batteries for Flashlights, Torches, headlamps, Camping Lights





SPECIFICATIONS
Turbo High Medium Low Moonlight
Lumens: 1800 500 200 100 -
Runtime (Hours): - 1.75 11 20 -
Output Modes: 3+ Brightness Levels, Flashing
Compatible Batteries: 2 x 18650, 4 x CR123A, 4 x 16340
Batteries Included: No
Included Accessories: Mounting Straps, Remote Pressure Switch, Spare O-ring(s)
Flashlight Usage: Bike Lights
Throw Distance (Max): 170m
LED: CREE XM-L2 T6
Switch Location: Body
Product Certifications: ANSI, IPX-6
Brand: Fenix
Primary Material: Anodized Aluminum
Product Weight: 5.68oz
Product Dimensions: 4.98" (L) x 1.96" (W) x 1.25" (H)
UPC: 6942870302621
Country of Origin: CN

Fenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in IndiaFenix BC30 1800Lumen 2*18650 Battery, Rechargeable Beam light in India

    Our customers are our Number 1 priority at LightMen LED Flashlights India.

    Shipping Information:

    Delivery Services:

    • Free delivery for ALL orders. We don't charge anything for shipping.
    • We use BlueDart, FedEx, Delhivery, India Post & TheProfessional Courier Service. You may chose the courier service during the checkout process.
    • Order's are packed and shipped the same day OR the next working day depending on the courier cut off time.
    • Tracking Numbers are either given out the same day or the next day via email & text message, Please call on +91-9849000777 for any urgent need.
    • Metro City & Tier 1 City orders are delivered within 2 - 4 days rest may take upto 7 days depending on your location. We ship the items from Hyderabad, Telangana.
    • We DO NOT provide Cash on Delivery service.

    Holidays: Sundays and Public Holidays, even though orders might be processed, shipping cannot be done.

    Tracking: For all Shipping options that we provide, tracking is available on the carrier website using the Waybill number provided by us once the order is fulfilled, the details will be send to you via email & SMS.

    Orders, for which payments are confirmed before 12:30 PM IST, shipping is done on the same day.

    If there is any emergency requirement for shipping, do let us know so we can do the needful on the same day, whatever that is - while we do not promise anything, we try to do our best for such emergency requirements. We go the extra mile when there is need. Speaking to us directly will help us serve better for such orders.

    We take 100% responsibility on the shipping, a product broken due to shipping will be replaced immediately.

    This has to be notified within 1-day of arrival and the product has to be sent back to us for examination so that we can verify and replace the item. While we try to be proactive and provide world-class support, there might be instances of delay.

    Feel free to call us anytime, +91-9849000777 We'd be happy to help.

    Happy Shopping!

    Terms: Payment must be approved by bank as successful. We ship items ONLY upon successful payment confirmation from our bank.

    Warranty & Returns:

    When purchasing Fenix products, it is important that customers are aware of the following:

    • If there is a problem with the Fenix product when it arrives at a customer's address, the customer will have to send the light back to the Fenix seller in the seller's location(HYDERABAD).

    • Warranty work for Fenix lights is based on the light's serial number. The serial number is traced to a particular Fenix distributor and country. So when warranty work is required, the light will have to go back to the country from which the light was purchased. This is important if you are purchasing a light from a seller in a country other than yours. We undertake repairs and warranty for the light bought from us or Fenix Authorised dealers in India ONLY.
    • Warranty policies are set by Fenix the manufacturer. However, individual Fenix dealers/sellers determine return/replacement policies. Know your seller's policies to avoid any surprises.

    How long does it take to get warranty or service work done?
    LightMen has a full-service Warranty and Repair Department.  For the products which can be repaired in our Hyderabad Repair Centre, repairs are normally done within 2 weeks(14 days) POST receipt as long as parts are available

    There are many a times when we are out of stock on certain parts, You will be notified of the progress. We may take around 45 days for repairs if the light has to go to china for repairs due to non availability of parts or if the flashlight needs to be repaired.

    EXCEPTION:  Because headlamps are waterproof, repair times are longer because they have to be returned to the manufacturer for repairs.   When possible, you will be offered a "loaner" headlamp while your light is being repaired.


    We appreciate your support of Fenix products. We look forward to continuing to offer you the best lighting products on the market.

    Fenixlight Limited
    Shenzhen, China

     Should you need to return a Fenix product to us, please send to:

    LightMen India
    3-6-526, 3rd Floor, 301/302/303 & 304,
    Eldarado Estates, Opp: Westside,
    Behind GKB Opticals,
    Hyderabad - 500029
    Telangana, India.
    (M) +91-9849000777 | Email: support@lightmen.in
    Fenix Products Warranty

    CATEGORY 1:
    Flashlights, Headlamps, and Bike Lights.
    (includes all lights which ship WITHOUT rechargeable batteries and those lights which ship WITH
    rechargeable batteries which can be removed from
    the light) Examples: TK series, LD series, E series,
    SD series, RC series, UC Series, Camping Lanterns,
    and UC35.

    5 Years on the Light Without USB Port

    (1 year on the included rechargeable
    battery if there is one)

    2 Years for Light if there is a USB port on the light.

    (1 year on the included rechargeable

    battery if there is one)

    CATEGORY 2:
    Flashlights, Headlamps, and Bike Lights which ship WITH
    a sealed battery pack which cannot be accessed by the customer. Example:  BC35R

    2 Years on both the light and battery pack

    CATEGORY 3:
    Rechargeable batteries, battery chargers, bike mounts,
    and Remote Pressure Switch

    1 Year (no extended warranty offered)

    Battery & Charger :
    Please note that replacements and repair is not applicable for batteries and chargers for various reasons like dropping the batteries, inserting batteries in reverse while charging, voltage fluctuations. This could damage both the batteries and the charger. Also, please read the manuals provided(if any) with the flashlight to understand which way to insert the batteries into the lights. (For flashlights, if its not mentioned, its mostly positive first, meaning positive towards the LED). However, all batches of batteries and chargers are checked randomly by our team to see if there are issues with quality.

    Batteries and chargers if reported dead/faulty on arrival(or within the first one week of arrival) can be replaced if found no abuse, these have to be returned to us for inspection, if found no abuse, replacement would be sent - return shipping charges(one way) would be paid by us.

    Return's:

    When you order a product from LightMen that is in perfect working condition but for some reason you are not satisfied with its performance, we accept the returns in a 15 day no questions asked policy with 100% refund.

    Exception to 100% refund: The products we thus receive, are unsealed products and not in sellable condition, hence we charge a 25% restocking fee, ONLY for the items that comes in Blister-sealed package which cannot be sealed and re-sold to other customers, making it difficult for us to sell it to anyone else. Whenever someone buys an electronic product from a website, they expect it be in sealed condition. In fact, some people also want to save the packaging. Therefore, people are reluctant to buy a unit that has already been unboxed, hence the 25% re-stocking fee.

    Products that comes in blister and are charged re-stocking fees:

    Fenix E01, Fenix E05, Fenix E12, Fenix E35UE & Chargers.

    Payment's:

    CLICK HERE FOR MORE INFORMATION ON PAYMENT's ACCEPTED

    Credit Cards

    Credit Cards

    Net Banking

    Net Banking

    Debit Cards

    Debit Cards

    ATM Cards

    ATM Cards

    Bank's IMPS

    Bank's IMPS

    Digital Wallets

    Digital Wallets

    Bank EMI

    Bank EMI

    - Credit Cards / Debit Cards / Net Banking (Through Secured Payment Gateway Partner - Direct Pay

    Note: we do not capture any info about your credit card or bank account, you will be redirected to the payment partner processing page which is a secured and encrypted page where you can give your payment details. You will be redirected back to www.ledflashlights.in once the payment is processed.

    Customer Reviews

    Based on 4 reviews
    75%
    (3)
    25%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    R
    R.K.
    Vibration Free, Cycle with confidence in the night!

    Excellent light, 1200 lumen is enough for my taste.
    Just use good quality batteries, i use the Fenix 3400mAh and they work like a charm during my early morning rides.
    Wide bean pattern(just like car's dual beam) and the flood trow is great for a cycle light!

    I LOVE IT!

    B
    B.

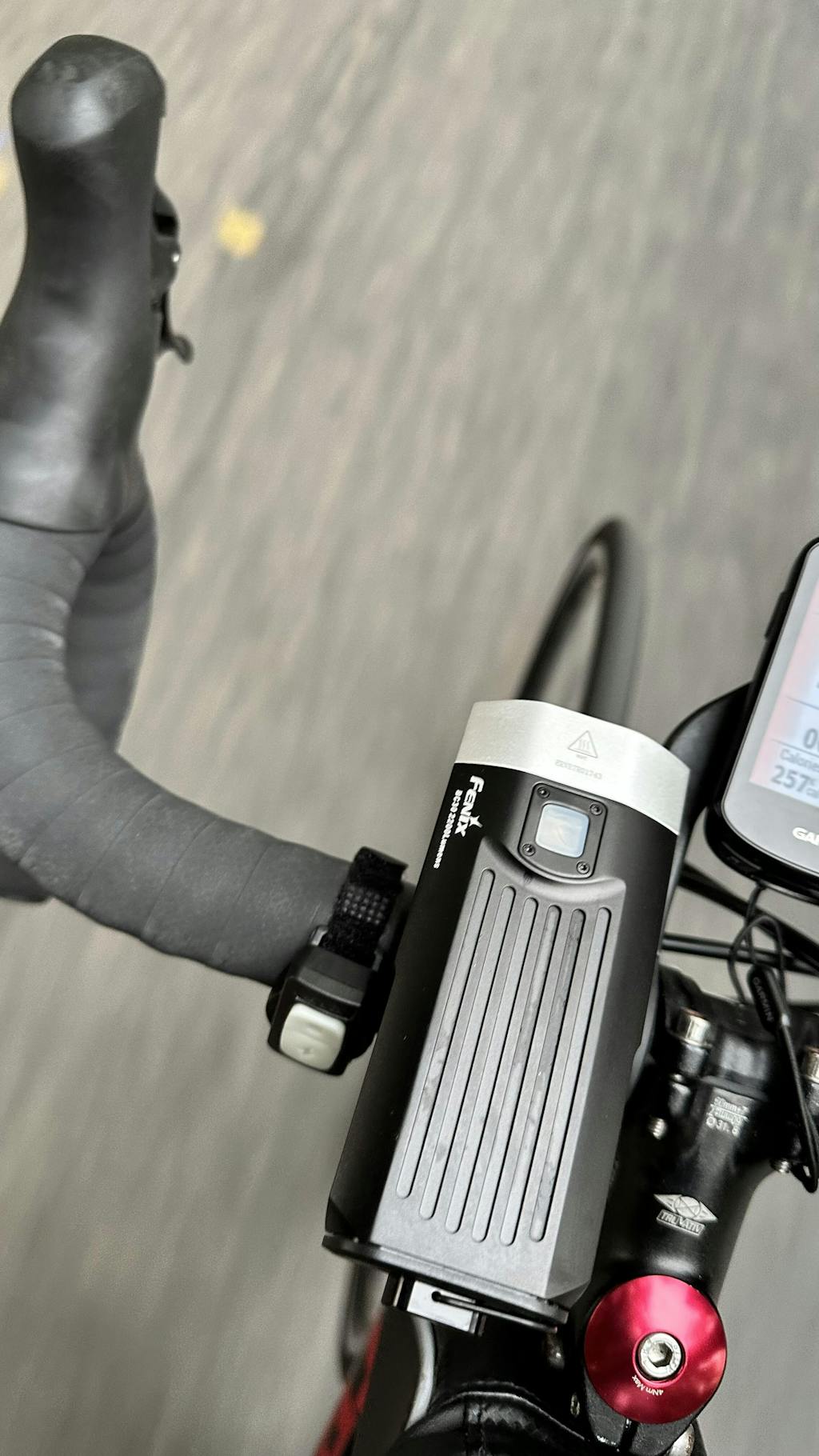

    Fenix BC30 bike light

    The fenix BC30 is a great cycle light. I have been using this light for the past three months.The built quality and water proofing capability is excellent for this light when ever the turbo mode is triggered this tiny light puts out a hell of a punch beam which shames the sun. Pedestrians and opposite drivers wonder thinking what it is. In practical just the 200 Lumens setting is all you need for night cruising. The turbo can be operated in emergency cases just with the click on the wired remote switch which is very much helpful for overtaking and to grab the attention of opposite drivers who tries to push you out of the road in busy traffic. Operating the light with the right combination of 200 lumens and turbo mode ( Emergency case only) I used to get backup for 100 to 120 Km from a pair of fully charged fenix 3400mah 18650 batteries. The neutral light makes it unique in cycle light family as it has a good penetration in fogy and rainy weather. It is a serious light for serious cyclist. Speaking shortly this light is a kinda awesome.

    M
    M.D.
    Versatile, Bright, Well Designed, Sturdy Bike and EDC light!

    BC30 is a very versatile, as it can be mounted on a bike very firmly & can also be easily detached for EDC purpose.

    Fenix did a good job in having the Cree XM L T6 lamps onboard, which offers better colour rendition thanks to 'neutral white' tint.

    The light offers 4 brightness levels: Turbo - 1200 lm, High- 500 lm, Mid - 200 lm, Low -100 lm & an Instant Burst- 1800 lm.
    High mode is sufficient for regular cycling in dark areas. But it falls short in Urban Lit up environment, but can be used as front warning light. The Instant Burst offered through the remote activation switch is a blessing in Indian Urban Environment. In my experience it really helps in catching attention of traffic and pedestrians.

    BC30 is more of a flood light and not a spot light for longer distances. But offers considerable throw at Turbo and Burst mode. The Dual beam works fine, but not as precisely as shown on paper. It is great for the rider, but can be annoying for on-coming traffic.

    The light offers a single switch operation, which also gives battery level indication. Also the light is designed in a way that it wont distract the rider even in lean forward position.

    Also the mount is Very Sturdy.

    Cons:
    - Battery compartment locking is pain staking. One has to push it really hard and then twist the ring simultaneously to lock it. Fenix definitely needs to rework on this design issue.
    - Lacks Strobe & Beacon modes.
    - Burst can be activated only through Remote switch.

    OVERALL AN AMAZING LIGHT!

    R
    R.S.
    Great Light for the right bike!

    After a lot of research I came across fenix lights and bought a BC30. in short, Its is a great light.
    Spending so much on my bike, this light makes me feel i have made the right choice for my cycle by spending a little more.
    The Laser Engraving on the flashlight makes it look so personalised and awesome.
