Net Quantity: 1pc

The Fenix E04R solves a problem most clip-on lights don't even try to: getting the beam pointed exactly where you need it. A 360-degree rotating 16mm clip and 40-degree tilt angle let you aim it precisely, whether it's clipped to a shirt pocket, a gear strap, or a hat brim. White output reaches 300 lumens and 151 feet, with up to 87 hours of runtime on its lowest Moonlight setting for all-night reliability.

A side-mounted warning light adds serious versatility — red/blue flashing, red flashing, blue flashing, RGB pulse, and RGB chase — turning the E04R into a real signal and safety light, not just a task light. USB-C rechargeable, IP66 waterproof, and rated for 1-meter impact resistance, it's built for first responders, tradespeople, and anyone who wants a lightweight backup light that stays out of the way until it's needed.

With 11 total modes, the E04R offers incredible versatility in a tiny package. It features both forward-facing white and red light, along with five colorful Scene modes on the side-facing ring light for safety and signaling. At only 2.3" long, it delivers a capable 300 lumens and is quickly charged via its built-in USB Type-C port.

Built to withstand the elements, the E04R is IP66 rated for heavy rain resistance, and its charging port also has inner waterproofing. Whether you’re hiking, working on a DIY project, or improving your visibility while walking, this clip on flashlight provides the flexible, reliable lighting you need.

OUTPUTS

• White High reaches 300 lumens at 151 ft; Red High adds a low-glare 12-lumen option.
• Runtime: White Moonlight mode runs up to 87 hours for all-night standby.
• Versatility: A separately switched side warning light adds Red & Blue flash, RGB pulse, and RGB chase patterns.

KEY FEATURES

• White main LED plus a separate red-light LED, each independently switch-controlled

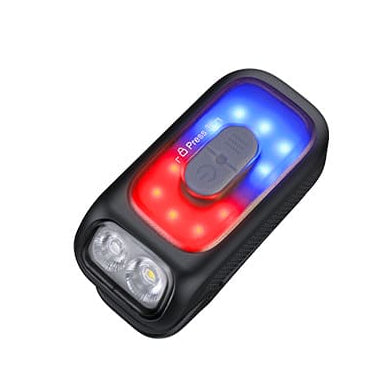

• Side warning light with 5 patterns: Red & Blue flash, Red flash, Blue flash, RGB pulse, RGB chase

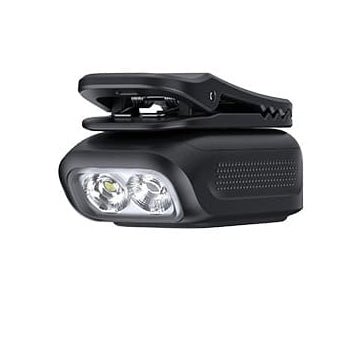

• 360-degree rotating clip with 40-degree tilt angle for hands-free hat, pocket, or backpack wear
• Dual-switch electronic lockout (main light + side light) prevents accidental activation
• Intelligent memory circuit recalls the last-used White/Side light output
• Utilizes one Luminus SST-12 white light LED and one red light LED; with a lifespan of 50,000 hours each.
• Built-in 400mAh battery, with a runtime of up to 87 hours in the Moonlight output.
• Multi-light effect design integrating red-and-white dual main light and side warning light (supporting Red & blue flash, Red flash, and Blue flash), ideal for both everyday illumination and safety warnings.
• 360° rotatable clip + 40° beam angle, supporting multiple wearing and usage methods (pockets, caps, backpacks, and more), leaving your hands free.
• Simple and fast operation with the dual switch.
• Battery level Indication and low-voltage warning function.
• Lockout function avoids accidental activation. IP66-rated protection, reliable for all-weather use.

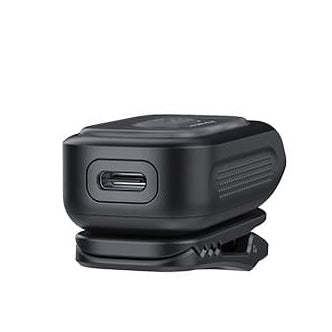

• Universal USB Type-C charging port with inner waterproofing treatment.

BATTERY & CHARGING

• Included: Built-in 400mAh rechargeable Li-Ion battery
• Charging: Inner waterproof USB Type-C port; about 2 hours from depleted to full; indicator red while charging, green when full
• Note: All modes/outputs work while charging except White High

SIZE & DIMENSIONS

• 2.30" x 1.18" x 1.17" (58.5 x 30 x 29.8 mm)
• Weight: 1.45 oz (41 g, including battery)

OPERATING INSTRUCTIONS

• On/Off: Press and hold the main light switch for 0.5 seconds to turn the White light mode on/off. Double-click to turn on Red light mode; press and hold 0.5 seconds to turn off. Press and hold the side light switch for 0.5 seconds to turn Side light mode on/off.
• Mode Switching: Double-click the main light switch to move between White and Red light modes. Press and hold the side light switch for 0.5 seconds to enter Side light mode from either.
• Output Selection: White light: single click to cycle Moonlight → Low → Med → High. Red light: single click to cycle Low → High. Side light: single click to cycle Red & Blue flash → Red flash → Blue flash → RGB pulse → RGB chase.
• Lock/Unlock: With the light off, press and hold both switches simultaneously for 3 seconds to lock (blinks twice on Moonlight) or unlock (activates on Moonlight).
• Intelligent Memory Circuit: The light memorizes and recalls the last-used White/Side light output.

Charging

• Turn off the light, then connect the USB Type-C charging cable to the side charging port.
• Indicator glows red while charging and turns green when fully charged.
• Unplug the cable once charging completes.
• Charging voltage: 5V; maximum charging power 1.85W (5V/370mA); does not support fast charging.
• Normal charging time is about 2 hours from depleted to full with a 5V/1A adapter. All modes/outputs work while charging except White High.

Battery Level Indication

• Green light on: 100%-85% (saturated)
• Green light flashing: 85%-50% (sufficient)
• Red light on: 50%-25% (poor)
• Red light flashing: 25%-1% (critical)

Intelligent Overheat Protection The light steps down output automatically once it reaches 60°C/140°F or above; it gradually recalls the preset level once cooled, though high output levels must be manually reselected.

Low-Voltage Warning The light downshifts brightness automatically until Moonlight is reached; in Moonlight the indicator blinks red continuously to prompt a recharge (the light will not shut off automatically).

Usage and Maintenance

• Disassembling the sealed head can damage the light and voids the warranty.
• Lock the light to prevent accidental activation during storage or transport.
• Poor battery level or an engaged lock can cause flickering or failure to illuminate — recharge or unlock as needed.

WHAT'S INCLUDED

• Fenix E04R flashlight
• USB Type-C charging cable
• Lanyard
• User manual
